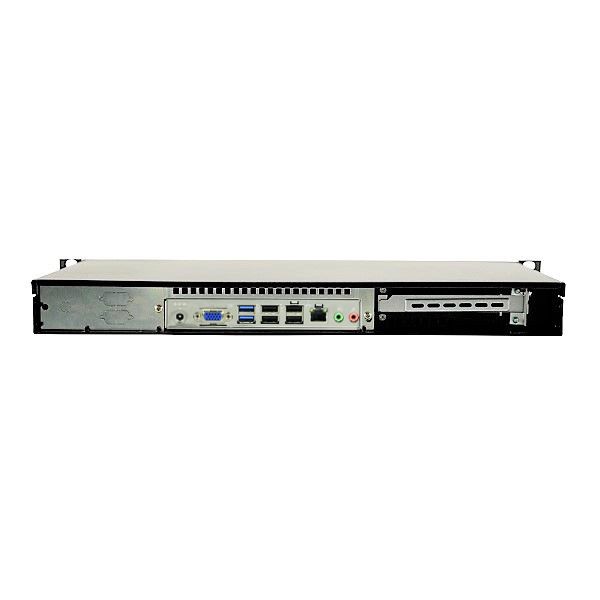

SL-1U-LL1900J-GC-NF

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q2 2023) with Intel Celeron SoC, Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W, 1x GB (10/100/1000) LAN, HDD or SSD, 6x Serial, Up to 8GB RAM, 9x USB 2.0, 1x USB 3.0, 60W AC/DC Power Adapter Included

Type:

  • 1U Rack Mount Industrial PC
  • Depth: 11", Max Card Depth: 8.5"

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
  • Long Production Cycle Motherboard (Through Q2 2023)
  • LAN: 1x GB (10/100/1000)
  • Video: VGA
  • Audio: Realtek® ALC662 HD Audio
  • Ports:
    9x USB 2.0 Ports ( 2 Front, 5 Rear, 2 via internal headers )
    1x USB 3.0 Port ( 1 Rear )
    6x COM Ports (Headers)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Memory: 4GB DDR3 1600MHz SODIMM RAM 1.35V
  • Hard Drive: 250GB SSD SATA 6.0Gb/s, 500/300MB/s read/write (or greater)
  • Power Supply: 60W AC/DC Power Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q2 2023
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 1
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: Realtek® ALC662 HD Audio
  • On Board Video
  • Video Chipset: Supported by CPU - see Embedded CPU Information
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8111G
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 1
  • mini PCIe
  • USB and PCIe signals
  • half and/or full size mini PCIe card: full size
  • SIM Card Slot On Motherboard: SIM
  • M.2
  • M.2
  • SATA
  • 42mm
  • 60mm
  • Rear IO
  • USB 2.0 Ports (on IO): 5
  • USB 3.0 Ports (on IO): 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • Serial (via Headers): 6
  • Parallel Ports: 1
  • FAN Connectors: 1
  • Management Features
  • Watch Dog
  • Environmental
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (32 Bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (32 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Entry
  • Windows 10 IoT Entry 2019 LTSC
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    M.2 slot supports SATA-Type SSD (2242/2260)

    Mini-PCIe slot supports WiFi Signal Only.

    Memory Support Upto DDR3L 1333



  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 8.5"
  • Internal 2.5" Bays: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Physical
  • Depth: 11"
  • Depth (Inches): 11
  • Width: 19.10"
  • Height: 1.75"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 15"
  • Shipping Box - Height: 5"
  • Shipping Weight: 15lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: 60W AC/DC Power Adapter Included
