SL-2U-MCX-C612-LA-1

A newer version of this item is available: SL-2U-MCX-C622SPW-LD

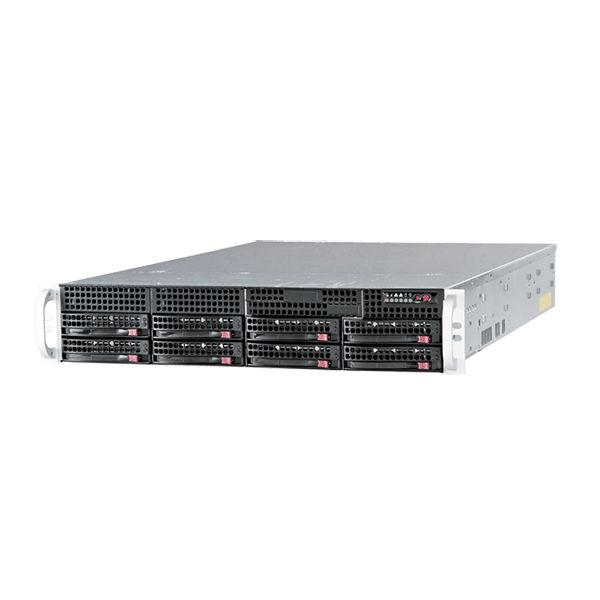

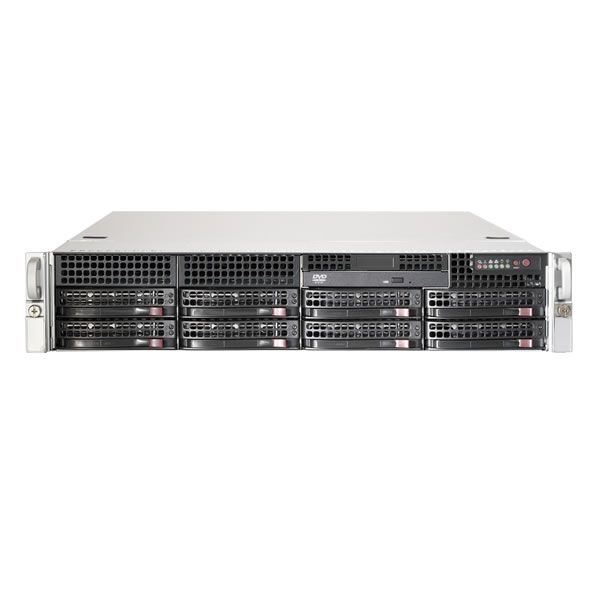

2U Rack Mount Server - Rackmount featuring Intel C612 Chipset, Xeon E5-2600v3 (LGA2011-3, ‘Haswell’), 2x GB (10/100/1000) LAN, 2x Serial, Up to 1024GB RAM, 6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), 6x Expansion Slots, Power Supply 740W (1+1) Redundant High-Efficiency Power Supply - 80+ Platinum.


Rails Included

Type:

  • 2U Rack Mount Server
  • Depth: 25.47", Max Card Depth: 7" to Full Length"

Motherboard:

  • Featuring Intel C612 Chipset and Xeon E5-2600v3 (LGA2011-3, ‘Haswell’) processor
  • Low Profile Slots:
    3 - PCIe x16
    3 - PCIe x8
  • LAN: 2x Ports (GB (10/100/1000))
  • RAID: 0,1,5,10 via LSI MegaRAID
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers )
    4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
    2x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF)

Also Included:

  • Processor: 2 x E5-2603 v3 - 1.6GHz Six Core Intel Xeon Processor - 15MB Cache (85W)
  • Memory: 4 x 8GB DDR4 2666MHz ECC Registered RAM
  • Power Supply: 740W (1+1) Redundant High-Efficiency Power Supply - 80+ Platinum
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty
Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

* Required Fields

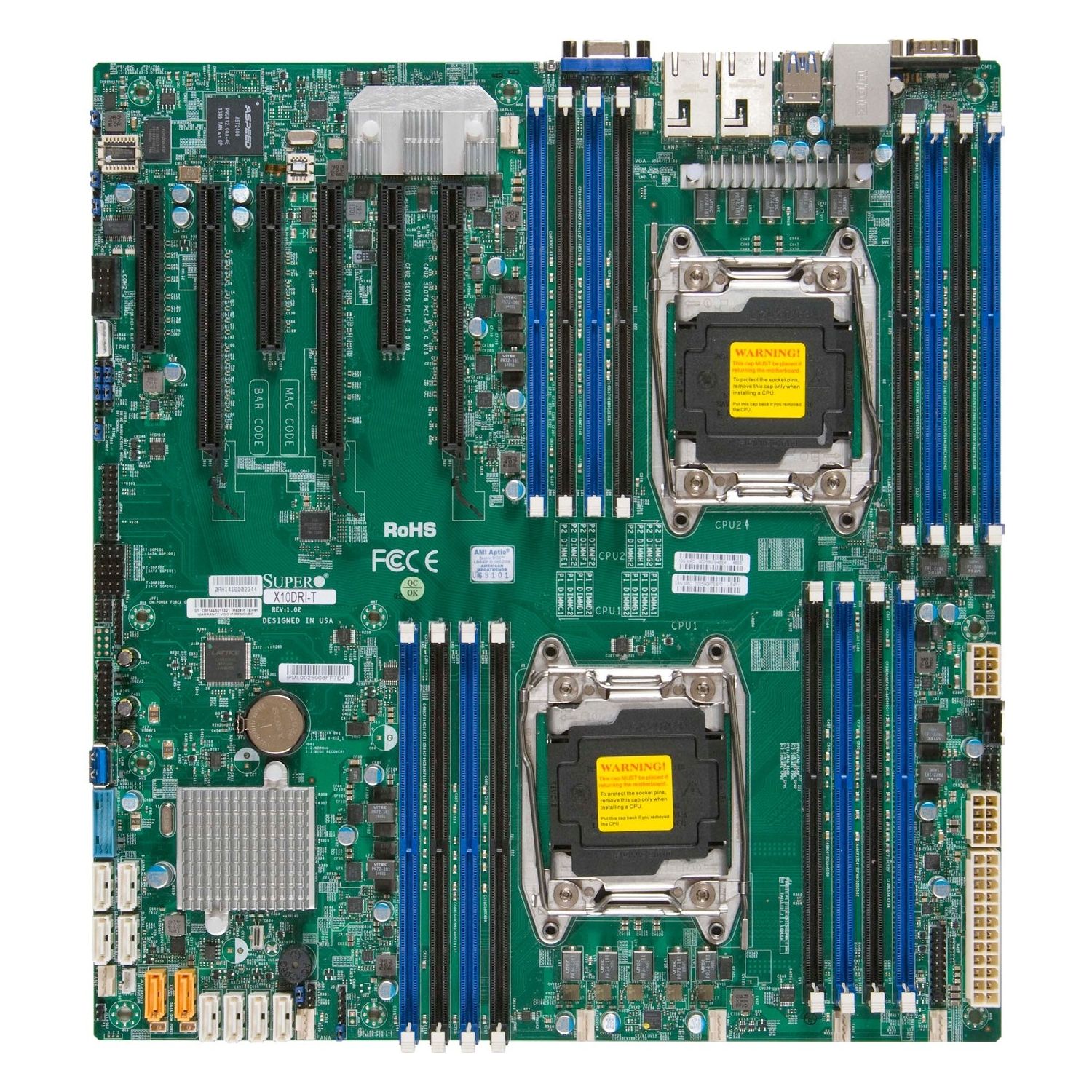

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Extended ATX
  • Supported CPU
  • Number of Processors: 2
  • Processor Type: Xeon E5-2600v3 (LGA2011-3, ‘Haswell’)
  • Chipset
  • Chipset: Intel C612 Chipset
  • Memory
  • Memory Type: DDR4 2133MHz ECCR
  • Memory Type: ECC Registered
  • DIMMS: 16
  • Maximum Memory: 1024GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: ASPEED AST2400 BMC
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i350
  • Third LAN Chipset: Dedicated IPMI
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 10
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 3
  • PCI Express x8 Slots On Motherboard: 3

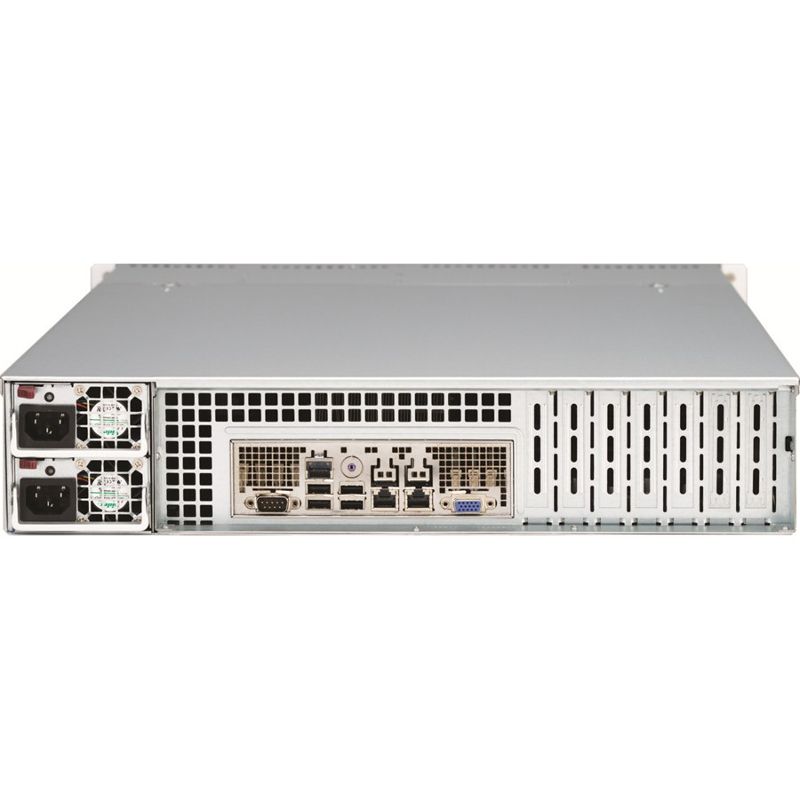

  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.0 Ports (on IO): 2
  • Serial (Rear IO): 1
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.0 Ports (on Headers): 2
  • Serial (via Headers): 1
  • FAN Connectors: 8
  • DOM
  • Chassis Intrusion
  • Management Features
  • TPM Support: Via 1.2 Header
  • Environmental
  • Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF )
  • High Humidity: 90%
  • Low Humidity: 8%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (64-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent
  • Windows 10 IoT Ent 2019 LTSC
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Windows Server 2012
  • RED HAT Enterprise LINUX SERVER STANDARD
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year
  • Other Features
  • Other Features:

    PCI-Express

    • 3x PCI-E 3.0 x16 (Low-profile)
    • 3x PCI-E 3.0 x8 (Low-profile)

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Redundant Power Supply Capable
  • Slide Rails: Included
  • Expansion
  • Low Profile Slots: 6
  • Max Card Depth: 7" to Full Length"
  • 3.5" Hot Swap Bays: 8
  • Cooling System
  • Maximum Fan Count: 8
  • Included Fans: 3
  • Physical
  • Depth: 647mm
  • Depth (Inches): 25.47
  • Width: 437mm
  • Height: 89mm
  • Shipping Box - Depth: 35"
  • Shipping Box - Width: 27"
  • Shipping Box - Height: 12"
  • Shipping Weight: 55lbs
  • Power
  • Built-in Chassis Power Supply: 740W (1+1) Redundant High-Efficiency Power Supply - 80+ Platinum
