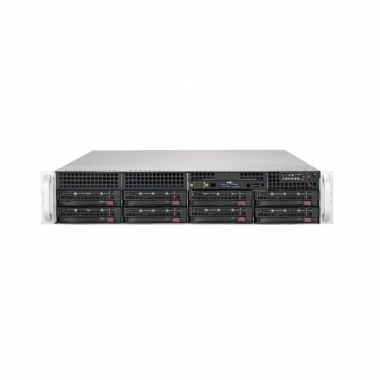

2U Rack Mount Server - Rackmount featuring
Intel C622 Chipset, Intel® Xeon® Scalable Processors, 2x 10GBase-T LAN,
HDD or SSD,
2x Serial,
Up to 192GB RAM,
7x USB 2.0,
4x USB 3.0,
5x Expansion Slots, 500W high-efficiency redundant power supplies with PMBus 80+ Platinum
Type:
-
2U Rack Mount Server
-
Depth: 25.60", Max Card Depth: 13""
Motherboard:
- Featuring Intel C622 Chipset and Intel® Xeon® Scalable Processors processor
- Full Height Slots:
1 - PCIe x8
4 - PCIe x4
- LAN:
2x 10GBase-T
- RAID:
0,1,5,10
- Video:
VGA
- Audio:
No Onboard Audio
- Ports:
7x USB 2.0 Ports (
2 Rear, 5 via internal headers )
4x USB 3.0 Ports (
2 Rear, 2 via internal headers )
2x COM Ports (1 Rear, 1 on Headers)
See specifications for more ports
- Operating Temperature:
10ºC to 35ºC (50ºF to 95ºF)
Also Included:
- Processor:
Xeon Bronze 3104 - 1.70GHz Six Core Intel Processor - 8.25MB Cache (85W) - Upgradeable
- Memory:
8GB DDR4 2400MHz ECC Registered RAM - Upgradeable
- Hard Drive:
250GB NVMe SSD M.2 3.5GB/2.3GB - Samsung 970 EVO Plus - Upgradeable
- Power Supply: 500W high-efficiency redundant power supplies with PMBus 80+ Platinum
- Operating System: Not Included - See options below
- Warranty:
One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads

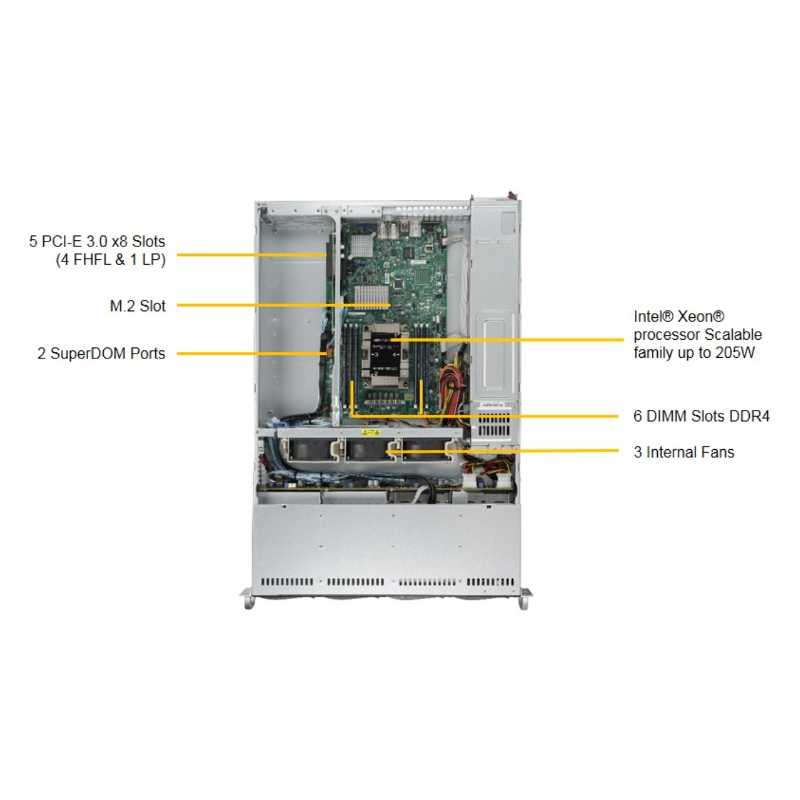

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: Proprietary
- Supported CPU
- Number of Processors: 1
- Processor Type: Intel® Xeon® Scalable Processors
- Chipset
- Chipset: Intel C622 Chipset
- Memory
- Memory Type: DDR4 2400MHz ECCR
- Memory Type: ECC Registered
- DIMMS: 6
- Maximum Memory: 192GB
- On Board Audio
- Audio Type: No Onboard Audio
- On Board Video
- Video Chipset: ASPEED AST2500 BMC
- Video on IO: VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 10GBase-T
- LAN Chipset: Intel® X722
- Second LAN Chipset: Intel® X557
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 10
- mini PCIe
- M.2
- M.2 NVMe: 1
- M.2
- SATA
- PCIe
- 110mm
- 80mm

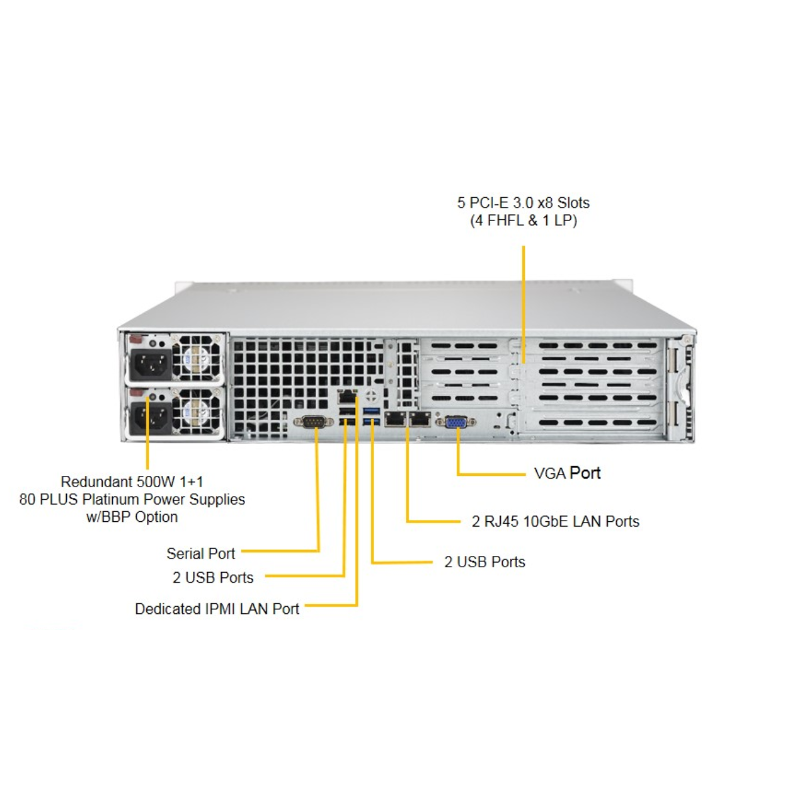

- Rear IO
- USB 2.0 Ports (on IO): 2
- USB 3.0 Ports (on IO): 2
- Serial (Rear IO): 1
- Headers
- USB 2.0 Ports (on Headers): 5
- USB 3.0 Ports (on Headers): 2
- Serial (via Headers): 1
- Management Features
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature:
10ºC to 35ºC (50ºF to 95ºF)
- High Humidity: 90%
- Low Humidity: 8%
- Operating System Support
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Ent
- Windows 10 IoT Ent 2019 LTSC
- LINUX Ubuntu Workstation
- Ubuntu Server Edition
- Windows Server 2012
- Windows Server 2016 STD
- Windows Server 2019 Std
- RED HAT Enterprise LINUX SERVER STANDARD
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Warranty of Component
- Motherboard Warranty: 1 Year
- Other Features
- Other Features:
PCI-Express
- 4 PCI-E 3.0 x8 (FHFL) slots
- 1 PCI-E 3.0 x8 (LP) slot
Chassis Specifications:
- General
- Form Factor: 2U Rackmount
- Color: Black
- Material: Steel & Plastic
- Material Thickness: 1mm
- Redundant Power Supply Capable
- Slide Rails: Optional
- Expansion
- Full Height Slots: 4
- Low Profile Slots: 1
- Max Card Depth: 13""
- 3.5" Hot Swap Bays: 8
- Slim CDBay: 1

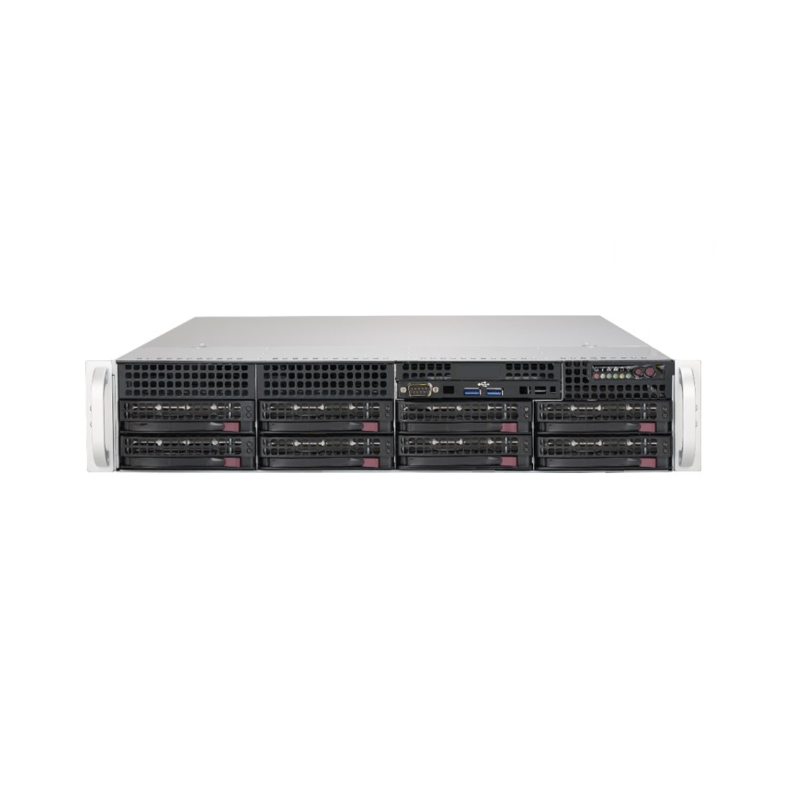

- Front Ports
- USB 3.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 3
- Included Fans: 3
- Physical
- Depth: 25.60"
- Width: 17.20"
- Height: 3.50"
- Shipping Box - Depth: 34"
- Shipping Box - Width: 26.50"
- Shipping Box - Height: 11"
- Shipping Weight: 60lbs
- Power
- Built-in Chassis Power Supply: 500W high-efficiency redundant power supplies with PMBus 80+ Platinum
