SL-4U-X299K-HA This item is no longer available.

A newer version of this item is available: SL-4U-X299TUF-HA

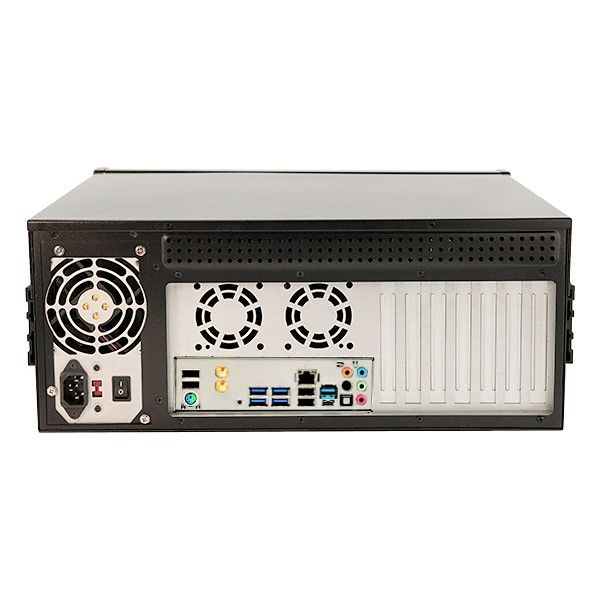

4U Rack Mount Industrial PC - Rackmount featuring Intel X299 Chipset, Intel® Core™ X-series Processors ( FCLGA2066), 1x GB (10/100/1000) LAN, HDD or SSD, Up to 128GB RAM, 10x USB 2.0, 5x USB 3.1, 5x Expansion Slots, 600W Power Supply

Type:

  • 4U Rack Mount Industrial PC
  • Depth: 17.70", Max Card Depth: 12.28", Locking Front Bezel

Motherboard:

  • Featuring Intel X299 Chipset and Intel® Core™ X-series Processors ( FCLGA2066) processor
  • Full Height Slots:
    4 - PCIe x16
    1 - PCIe x1
  • LAN: 1x GB (10/100/1000)
  • RAID: 0,1,5,10
  • Video: None
  • Audio: 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
  • Ports:
    10x USB 2.0 Ports ( 2 Front, 4 Rear, 4 via internal headers )
    5x USB 3.1 Ports3 Rear, 2 via internal headers )
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: i7-9800X - 3.8GHz (up to 4.4GHz) Intel Octa (8) Core CPU - 16.5MB Cache, No Onboard Graphics (165W)
  • Memory: 2 x 4GB DDR4 2666MHz RAM
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
  • Power Supply: 600W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Intel® Core™ X-series Processors ( FCLGA2066)
  • Chipset
  • Chipset: Intel X299 Chipset
  • Memory
  • Memory Type: DDR4 2400MHz
  • Memory Type: Non-ECC
  • DIMMS: 8
  • Maximum Memory: 128GB
  • On Board Audio
  • Audio Type: 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
  • On Board Video
  • Video Chipset: None
  • Video on IO: None
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i219V
  • Wireless LAN: Integrated Intel® 802.11ac WiFi Module + Bluetooth 4.2 - Removable Under Networking Section
  • Drive Interface
  • SATA III Ports (6GB): 8
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 4
  • PCI Express x1 Slots On Motherboard: 1
  • mini PCIe
  • M.2
  • M.2 NVMe: 3
  • M.2
  • SATA
  • PCIe
  • 110mm
  • 30mm
  • 42mm
  • 60mm
  • 80mm
  • M.2 (2)
  • SATA
  • PCIe
  • 110mm
  • 30mm
  • 42mm
  • 60mm
  • 80mm
  • M.2 (3)
  • SATA
  • PCIe
  • 110mm
  • 30mm
  • 42mm
  • 60mm
  • 80mm

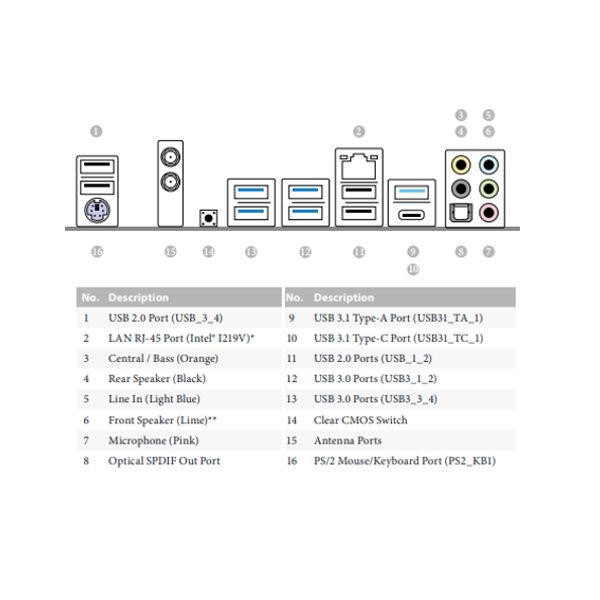

  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 4
  • USB 3.2 Gen 1 Type A Ports (on IO): 2
  • USB 3.1 Type C Ports (on I/O): 1
  • SPDIF Connector: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 6
  • USB 3.1 Ports Gen 1 (on Headers): 2
  • Thunderbolt 3 via Header: 1
  • FAN Connectors: 5
  • Audio on Headers
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • CE
  • FCC
  • Other Features
  • Other Features:

    - 4 x PCI Express 3.0 x16 Slots*
    - 1 x PCI Express 3.0 x1 Slot**
    - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™***
    - Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™***
    - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)

    *If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x16/x8.
    If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x8/x0.
    If you install CPU with 16 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x0/x0 or x8/x4/x8/x0.
    Supports NVMe SSD as boot disks

    **If PCIE4 slot is occupied, M2_2 slot will support M.2 PCI Express module up to Gen3 x2 (16 Gb/s).

    ***3-Way CrossFireX™ and 3-Way SLI™ are only supported with CPU with 44 lanes.

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 4U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 7
  • Max Card Depth: 12.28"
  • External 5.25" Bays: 3
  • Internal 3.5" Bays: 2
  • External 3.5" Bays: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 1
  • Physical
  • Depth: 17.70"
  • Depth (Inches): 17.7
  • Width: 19"
  • Height: 7"
  • Shipping Box - Depth: 26"
  • Shipping Box - Width: 23"
  • Shipping Box - Height: 12"
  • Shipping Weight: 45lbs
  • Other Features
  • Chassis Warranty: 1 Year
