SL-1U-MCX-C622SPW-LN

1U Rack Mount Server - Rackmount featuring Intel C622 Chipset, Intel® Xeon® Scalable Processors, 2x 10GBase-T LAN, HDD or SSD, 2x Serial, Up to 768GB RAM, 7x USB 2.0, 4x USB 3.0, 3x Expansion Slots, 700W 1+1 Redundant, Platinum Level

1U Rack Mount Server - Rackmount featuring Intel C622 Chipset, Intel® Xeon® Scalable Processors, 2x 10GBase-T LAN, HDD or SSD, 2x Serial, Up to 768GB RAM, 7x USB 2.0, 4x USB 3.0, 3x Expansion Slots, 700W 1+1 Redundant, Platinum Level

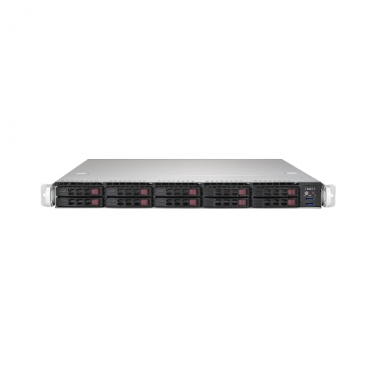

  • Front
  • Rear I/O
  • Top View

Type:

  • 1U Rack Mount Server
  • Depth: 23.50", Max Card Depth: 12.3""

Motherboard:

  • Featuring Intel C622 Chipset and Intel® Xeon® Scalable Processors processor
  • Full Height Slots:
    2 - PCIe x16
    1 - PCIe x8
  • LAN: 2x 10GBase-T
  • RAID: 0,1,5,10 via LSI MegaRAID
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    7x USB 2.0 Ports ( 2 Rear, 5 via internal headers )
    4x USB 3.0 Ports ( 2 Rear, 2 via internal headers )
    2x COM Ports (1 Rear, 1 on Headers)
    See specifications for more ports
  • Operating Temperature: 35ºC to 10ºC (95ºF to 50ºF)

Also Included:

  • Processor: 1.70GHz Six Core Intel Xeon Bronze 3104 Processor - 8.25MB Cache (85W) - Upgradeable
  • Memory: 8GB DDR4 2400MHz ECC Registered RAM - Upgradeable
  • Hard Drive: 250GB NVMe SSD M.2 3.5GB/2.3GB - Samsung 970 EVO Plus - Upgradeable
  • Power Supply: 700W 1+1 Redundant, Platinum Level
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Expedite
Processor
Memory
Hard Drive
Additional Hard Drives
Raid Controller
Cable
Riser Card
Plug-In Boards
Add-In Graphic Card
Networking
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Proprietary
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Intel® Xeon® Scalable Processors
  • Chipset
  • Chipset: Intel C622 Chipset
  • Memory
  • Memory Type: ECC Registered
  • DIMMS: 8
  • Maximum Memory: 768GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: 10GBase-T
  • LAN Chipset: Intel® X722
  • Second LAN Chipset: Intel® X557
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 10
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • M.2
  • M.2 NVMe: 1
  • M.2
  • SATA
  • PCIe
  • 110mm
  • 80mm
  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.0 Ports (on IO): 2
  • Serial (Rear IO): 1
  • Headers
  • USB 2.0 Ports (on Headers): 5
  • USB 3.0 Ports (on Headers): 2
  • USB 2.0 Ports (Type A): 1
  • Serial (via Headers): 1
  • FAN Connectors: 7
  • Chassis Intrusion
  • Management Features
  • IPMI
  • Watch Dog
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 35ºC to 10ºC (95ºF to 50ºF)
  • High Humidity: 8%
  • Low Humidity: 90%
  • Operating System Support
  • Windows 8.1 Pro (64-bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent
  • Windows 10 IoT Ent 2019 LTSC
  • Ubuntu Server Edition
  • Windows Server 2012
  • Windows Server 2016 STD
  • RED HAT Enterprise LINUX SERVER BASIC
  • RED HAT Enterprise LINUX WORKSTATION STANDARD
  • RED HAT Enterprise LINUX SERVER STANDARD
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Redundant Power Supply Capable
  • Slide Rails: Included
  • Expansion
  • Full Height Slots: 2
  • Low Profile Slots: 1
  • Max Card Depth: 12.3""
  • 2.5" Hot Swap Bays: 10
  • Front Ports
  • USB 3.0 Ports (Front): 2
  • Cooling System
  • Maximum Fan Count: 6
  • Included Fans: 5
  • Physical
  • Depth: 23.50"
  • Depth (Inches): 23.5
  • Width: 17.50"
  • Height: 1.70"
  • Shipping Box - Depth: 32"
  • Shipping Box - Width: 24"
  • Shipping Box - Height: 8"
  • Shipping Weight: 32lbs
  • Power
  • Built-in Chassis Power Supply: 700W 1+1 Redundant, Platinum Level
