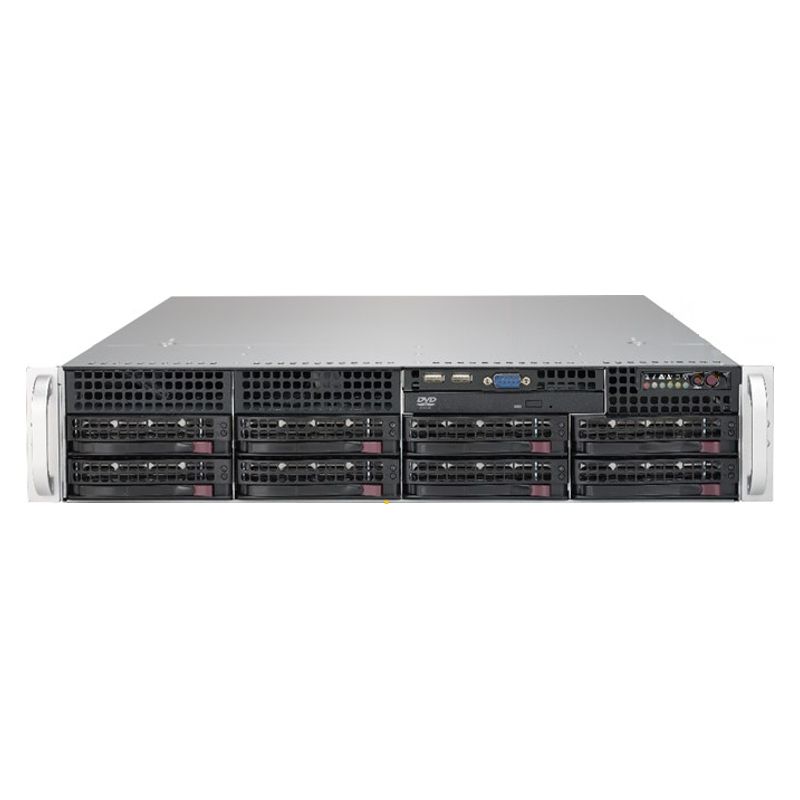

SL-2U-MCX-C621DPI-LF

2U Rack Mount Server - Rackmount featuring Intel C621 Chipset, Intel® Xeon® Scalable Processors, 2x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 2048GB RAM, 2x USB 2.0, 4x USB 3.0, 6x Expansion Slots, 1000W Redundant Power Supplies with PMBus 80+ Titanium

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Intel® Xeon® Scalable Platform

Type:

2U Rack Mount Server
Depth: 25.50", Max Card Depth: 8 - 14 Inches"

Motherboard:

Featuring Intel C621 Chipset and Intel® Xeon® Scalable Processors processor
Low Profile Slots:
4 - PCIe x16
2 - PCIe x8
LAN: 2x GB (10/100/1000)
RAID: 0,1,5,10
Video: VGA
Audio: No Onboard Audio
Ports:
2x USB 2.0 Ports ( 2 Front, 2 Rear )
4x USB 3.0 Ports ( 2 Rear, 2 via internal headers )
2x COM Ports (1 Rear, 1 on Headers)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: 2 x Xeon Bronze 3104 - 1.70GHz Six Core Intel Processor - 8.25MB Cache (85W)
Memory: 2 x 8GB DDR4 2400MHz ECC Registered RAM
Hard Drive: 250GB NVMe SSD M.2 3.5GB/2.3GB - Samsung 970 EVO Plus
Power Supply: 1000W Redundant Power Supplies with PMBus 80+ Titanium
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush build ready to ship in 3-4 business days, normal assembly/test time is 7-9 busines show $100.00

Memory

x 8GB DDR4 2400MHz ECC Registered RAM show $87.00

x 16GB DDR4 2400MHz ECC Registered RAM show $138.00

x 32GB DDR4 2400MHz ECC Registered RAM show $250.00

x 8GB DDR4 2666MHz ECC Registered RAM show $89.00

x 16GB DDR4 2666MHz ECC Registered RAM show $134.00

x 32GB DDR4 2666MHz ECC Registered RAM show $248.00

x 64GB DDR4 2666MHz ECC Load Reduced Registered RAM (LRDIMM) show $593.00

CD/DVD/OpticalDrive

None show Included

Slim SATA DVDRW Drive show $42.00

External USB DVD ReWriteable Drive show $51.00

Additional Hard Drives

1.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $138.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $169.00 each

4.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E8 Series show $235.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $356.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS 7E8 Series show $368.00 each

10.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $400.00 each

12.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $531.00 each

14.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $634.00 each

16.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $695.00 each

18.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $776.00 each

12TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS X12 Series show $550.00 each

2.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $138.00 each

4.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $165.00 each

4.0TB SATA 6Gb/s 5400RPM 64 MB 3.5" - WD Purple for Surveillance Storage show $163.00 each

6.0TB SATA 6Gb/s 5400RPM 64 MB 3.5" - WD Purple for Surveillance Storage show $243.00 each

256GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 860 PRO show $112.00 each

512GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 860 PRO show $144.00 each

1.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 860 PRO show $247.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 860 PRO show $623.00 each

4.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 860 PRO show $1,165.00 each

Raid Controller

None show Included

Configure RAID 0 (Striping) - REQUIRES 2 DRIVES OF SAME MODEL AND SIZE show $0.00

Configure RAID 1 (Mirroring) - REQUIRES 2 DRIVES OF SAME MODEL AND SIZE show $0.00

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 DRIVES OF SAME MODEL AND SIZE show $0.00

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 DRIVES OF SAME MODEL AND SIZE show $0.00

Cable

COM Port (Serial Port) Cable, 9-pin, w/ Low-Profile Bracket show $9.00 each

SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor show $51.00 each

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

Single Port RS-232 DB9 Serial PCI-Express 2.0 x1 Card, Full Height and Low Profile show $24.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers. show $68.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile.. show $34.00 each

Serial PCIe Card - 1 Port, RS-232 25pin 16550 UARTs - Low Profile show $75.00 each

Serial PCIe Card, 9pin 16550 UARTs - 2 Ports, Low Profile show $96.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $24.00 each

Parallel PCIe Card with EPP Mode - 1 Port, Low Profile show $69.00 each

4-port USB 2.0 PCI Express Card - 3 External and 1 Internal Ports, low profile supported show $56.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $80.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Add-In Graphic Card

NVIDIA Quadro P400 2GB GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 show $160.00 each

NVIDIA Quadro P620 2GB GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 show $235.00 each

NVIDIA Quadro P1000 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 show $480.00 each

Networking

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $182.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $285.00 each

PCIe x4 - 10Gbps Single Port Network Adapter - Full Height or Low Profile show $415.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $420.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-DA2 - Copper SFP+ Direct Attached - Lo show $421.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-SR2 - Optical Fiber - Low-profile/Full show $665.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $702.00 each

PCIe x8 Dual Port SFP+ Direct Attached Twinaxial Cabling Intel X710-DA2 10GbE Network Adapter. - Low P show $418.00 each

PCIe x8 Quad Port ..SFP+ Direct Attached Twin Axial Cabling Intel X710-DA4 10GbE Network Adapter. - Fu show $572.00 each

Operating System

None show Included

Microsoft Windows 10 Pro For Workstation, 64-Bit show $409.00

Microsoft Windows Server 2016 Standard - License and Media, No CALs - up to 16 Cores (additional licenses required for more than 16 CPU cores) show $905.00

Microsoft Windows Server 2019 Standard - License and Media, No CALs - up to 16 Cores (additional licenses required for more than 16 CPU cores) show $895.00

Ubuntu Server Edition Standard (Latest LTS Compatible). Community Support Only. Installation CD Not Included. show $35.00

Warranty

One-Year Depot Warranty show $0.00

Two-Year Depot Warranty show $199.00

One Year 24x7 Onsite Warranty (USA/Can) show $299.00

One-Year 8x5 Onsite Warranty (USA/Can) show $245.00

Three-Year Depot Warranty show $399.00

Two-Year 8x5 Onsite Warranty (USA/Can) show $475.00

Two-Year 24x7 Onsite Warranty (USA/Can) show $515.00

Three-Year 8x5 Onsite Warranty (USA/Can) show $760.00

Three-Year 24x7 Onsite Warranty (USA/Can) show $805.00

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" D show $767.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24 show $1,087.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (Short Depth: 18.1") with integrated keyboard and show $727.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touc show $1,087.00

1U Rackmount 19" LCD Keyboard Drawer, USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep Ra show $841.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" show $1,201.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $61.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $84.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $83.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $149.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $135.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $254.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. show $254.00 each

1U Keyboard/Touchpad w/ high-quality, full 101 key AT style keyboard. The articulating arm provides ef show $520.00 each

External Power

None show Included

Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $82.00

Uninterruptable Power Supply - 550VA, 120V AC, 330Watt, USB, 8 outlets show $112.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: Extended ATX
Supported CPU
Number of Processors: 2
Processor Type: Intel® Xeon® Scalable Processors
Chipset
Chipset: Intel C621 Chipset
Memory
Memory Type: DDR4 2400MHz ECCR
Memory Type: ECC Registered
DIMMS: 16
Maximum Memory: 2048GB
On Board Audio
Audio Type: No Onboard Audio
On Board Video
Video Chipset: ASPEED AST2500 BMC
Video on IO: VGA
VGA Port Out: 1
LAN
LAN Ports: 2
LAN Type: GB (10/100/1000)
LAN Chipset: Intel® X722
Second LAN Chipset: Intel® X722
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 14
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 4
PCI Express x8 Slots On Motherboard: 2
mini PCIe
M.2
M.2 NVMe: 1
M.2
PCIe
110mm
60mm
80mm

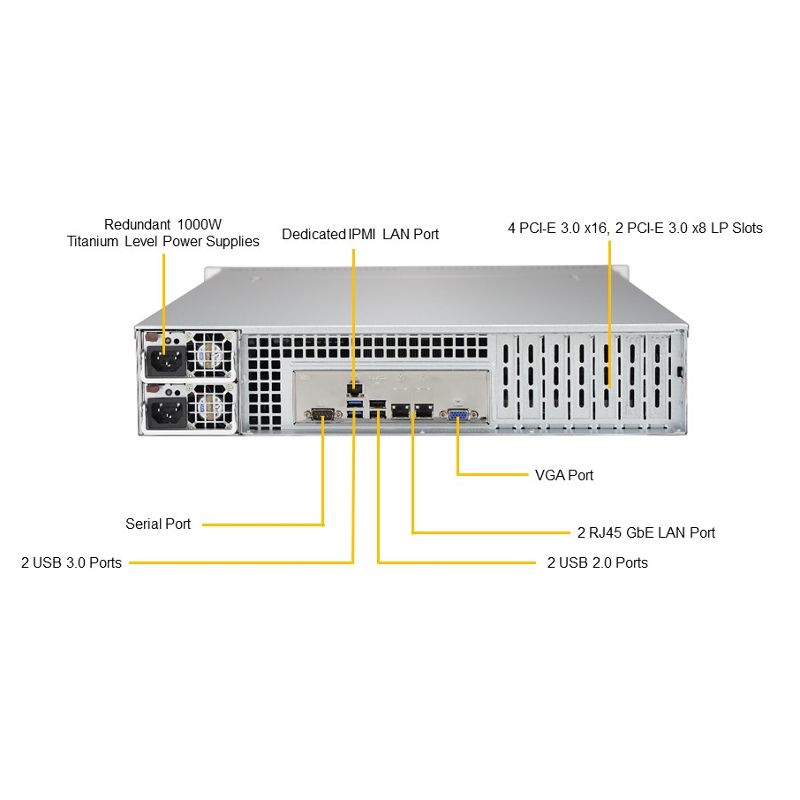

Rear IO
USB 2.0 Ports (on IO): 2
USB 3.0 Ports (on IO): 2
Serial (Rear IO): 1
Headers
USB 3.0 Ports (on Headers): 2
Serial (via Headers): 1
FAN Connectors: 8
Chassis Intrusion
Management Features
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 90%
Low Humidity: 8%
Operating System Support
Windows 10 Pro WS (64-Bit)
Ubuntu Server Edition
Windows Server 2016 STD
Windows Server 2019 Std
RED HAT Enterprise LINUX SERVER STANDARD
Compliance of Component
UL
CE
RoHS
FCC
Warranty of Component
Motherboard Warranty: 1 Year
Other Features
Other Features:
PCI-Express
- 4 PCI-E 3.0 x16 (Low-profile)
- 2 PCI-E 3.0 x8 (Low-profile)

Chassis Specifications:

General
Form Factor: 2U Rackmount
Color: Black
Material: Steel & Plastic
Material Thickness: 1mm
Redundant Power Supply Capable
Slide Rails: Optional
Expansion
Low Profile Slots: 6
Max Card Depth: 8 - 14 Inches"
3.5" Hot Swap Bays: 8
Front Ports
USB 2.0 Port (Front): 2
Cooling System
Maximum Fan Count: 3
Included Fans: 3
Physical
Depth: 25.50"
Depth (Inches): 25.5
Width: 17.20"
Height: 3.50"
Shipping Box - Depth: 34.50"
Shipping Box - Width: 11.40"
Shipping Box - Height: 26.70"
Shipping Weight: 37lbs
Power
Built-in Chassis Power Supply: 1000W Redundant Power Supplies with PMBus 80+ Titanium
