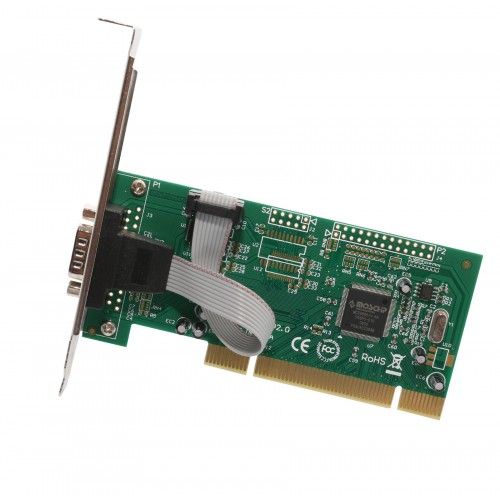

SY-PCI15003

Serial PCI Card - 1 Port, Full Height

  • 1 Port, Full Height
  • Easy Plug & Play Installation
  • Automatically Selects IRQ and I/O Address
  • Supports PCI IRQ Sharing-saves Valuable Resources for Other Expansion Cards
  • Support 32-bit PCI Bus, PCI Specification 2.1
  • Support Re-mapping to Legacy Address
  • Supports more than one Card in a System
  • Easy Plug & Play Installation
  • Automatically Selects IRQ and I/O Address
  • Supports PCI IRQ Sharing-saves Valuable Resources for Other Expansion Cards
  • Support 32-bit PCI Bus, PCI Specification 2.1
  • Support Re-mapping to Legacy Address
  • Supports more than one Card in a System
  • Serial Port:
    • Build-in 16C550 compatible UART with 16 byte transmit-receive FIFO
    • Fast data rates up to 1 Mbytes/sec
    • Able to support 16C650 (32 byte FIFO), 16C750 (64 byte FIFO), 16C850 (128 byte FIFO) compatible UART (Not all version).
  • Support Serial Devices:
    • Automated Teller machine, Bar-Code Reader, Digital Camera, Digitizing Tablet,External modem, Finger Print Identification, Infra-Red Transceiver, ISDN T/A, Magnetic Card Reader, PDAs, POS Devices. Multi-Modem Dial-up Server etc
  • Supports Windows 8 (Uses Windows 7 Driver)
  • Supports Windows Server 2012 (Uses Windows Server 2008 driver)
  • Netmos 9865 Chipset
  • Operating Systems Supported
    • Windows Server 2012
    • Windows 8
    • Windows 7
    • Windows 2000
    • Windows XP
    • Windows Server 2003
    • Windows Vista
    • Linux
    • DOS Operating System
