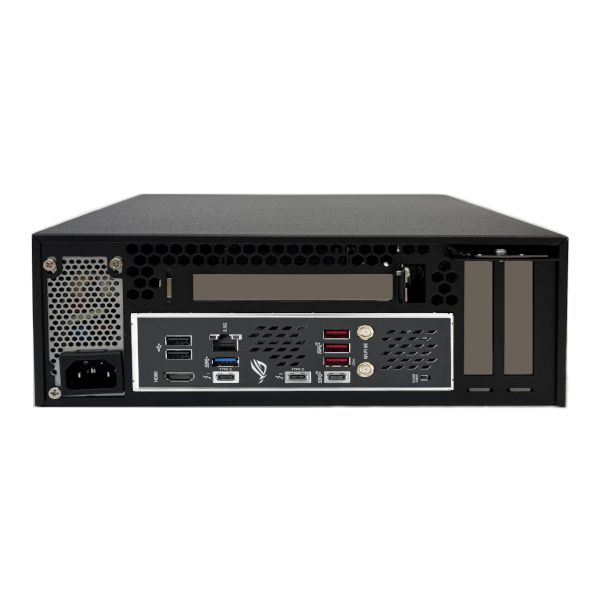

SL-EB-Z790STR-S15
Microbox PC - Embedded PC featuringIntel Z790 Chipset, 14th/13th/12th Gen Intel® Core™/Pentium™/Celeron™, 1x 2.5GbE (10/100/1000/2500) LAN, WIFI, Up to 64GB RAM, 4x USB 2.0 Ports ( 2 Front, 2 Rear ), 2x USB 3.2 Gen 1 Ports ( 2 Internal Headers ), 3x USB 3.2 Gen 2 Ports ( 3 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers ), 1x Expansion Slots, Dimensions of Enclosure: 9.45"L x 10.35"W x 3.74"H.
Type:
- Microbox PC
- Dimension: 9.45" x 10.35" x 3.74"
Motherboard:
- Featuring Intel Z790 Chipset and 14th/13th/12th Gen Intel® Core™/Pentium™/Celeron™ processor
- Full Height Slots:
1 - PCIe x16 - LAN: 1x Ports (2.5GbE (10/100/1000/2500))
- WiFi: Wi-Fi 6E + BT
- RAID: NVMe 0,1
- Video: HDMI + Thunderbolt 4 + Thunderbolt 4
- Audio: High Definition Audio CODEC ALC4050
- Ports:
4x USB 2.0 Ports ( 2 Front, 2 Rear )
2x USB 3.2 Gen 1 Ports ( 2 Internal Headers )
3x USB 3.2 Gen 2 Ports ( 3 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers )
2x Thunderbolt™ 4 (supports USB 4.0) Type-C Port (Rear)
See specifications for more ports - Operating Temperature: 0ºC to 0ºC (32ºF to 0ºF)
Also Included:
- Processor: G7400 - 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM)
- Memory: 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 400W 1U FLEX ATX Power Supply - 80+ Gold Efficient
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

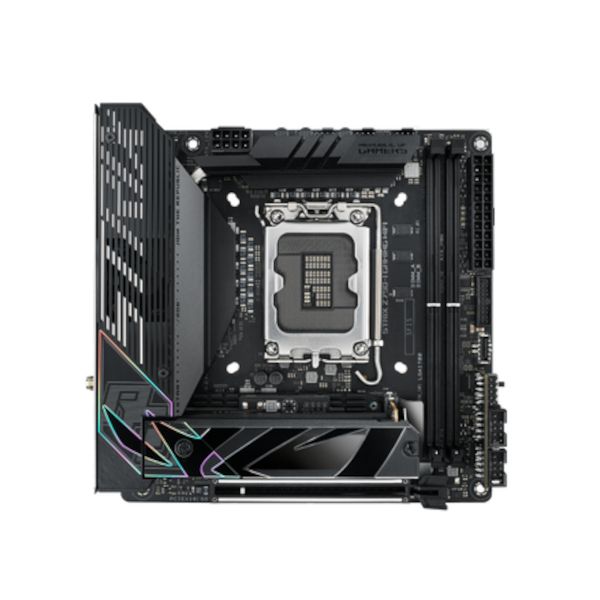

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Supported CPU
- Number of Processors: 1
- Processor Type: 14th/13th/12th Gen Intel® Core™/Pentium™/Celeron™
- Chipset
- Chipset: Intel Z790 Chipset
- Memory
- Memory Type: DDR5 4800MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 64GB
- On Board Audio
- Audio Type: High Definition Audio CODEC ALC4050
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: HDMI + Thunderbolt 4 + Thunderbolt 4
- HDMI Out: 1
- Thunderbolt™ video outputs: 2
- LAN
- LAN Ports: 1
- LAN Type: 2.5GbE (10/100/1000/2500)
- LAN Chipset: Intel® 2.5Gb Ethernet
- Wireless LAN: Wi-Fi 6E + BT
- Drive Interface
- SATA III Ports (6GB): 2
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

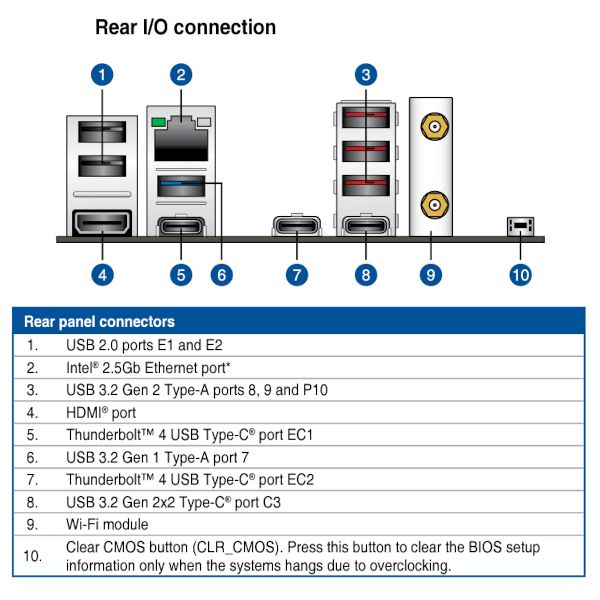

- Rear IO
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 2 Type A Ports (on IO): 3
- USB 3.2 Gen 2x2 Type C Ports (on I/O): 1
- Thunderbolt™ 4 (supports USB 4.0) Type-C Port: 2
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.2 Gen 1 Ports (on Headers): 2
- USB 3.2 Gen 2 Type-C (on Headers): 1
- FAN Connectors: 3
- Audio on Headers
- Environmental
- Operating Temperature: 0ºC to 0ºC (32ºF to 0ºF )
- Operating System Support
- Windows 10 Pro (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT 2021 LTSC Value
- Windows 10 IoT 2021 LTSC High End
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- Windows 11 IoT 2024 LTSC Value
- Windows 11 IoT 2024 LTSC High End
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Features:
1 x HDMI® port***
2 x Intel® Thunderbolt™ 4 ports (USB
Type-C®) support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
*** Supports 4K@60Hz as specified in HDMIIntel® 14th & 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
A resolution support depends on processors'
or graphic cards' resolution.Total supports 2 x M.2 slots and 2 x SATA
6Gb/s ports
Intel® 14th & 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2280 (supports
PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports****
*** M.2_1 comes from Intel® Z790 Chipset
when switched to PCIe 4.0 x4 mode
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports.2 x SATA 6Gb/s ports****
*AMD RAIDXpert2 Technology supports both
NVMe RAID 0/1 and SATA RAID 0/1.
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports - Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Embedded PC
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Expansion
- Full Height Slots: 1
- Low Profile Slots: 2
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 2
- Included Fans: 2
- Physical
- Depth: 9.45"
- Depth (Inches): 9.45
- Width: 10.35"
- Height: 3.74"
- Shipping Box - Depth:
- Shipping Box - Width:
- Shipping Box - Height:
- Shipping Weight:
- Other Features
- Chassis Warranty: 1 Year
