SL-VIDEO-PNY-NVS510-2GB-4DP This item is no longer available.

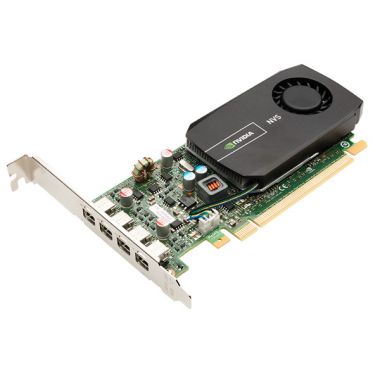

NVIDIA NVS 510 2GB 128-bit DDR3 PCIe 3.0 x16 HDCP Ready Workstation Video Card - 4 x DP

A newer version of this item is available: SL-VIDEO-PNY-P620-2GB
NVIDIA Quadro NVS 510 Architecture
  • Integrated DisplayPort 1.2
  • PCI Express 3.0 support
  • 12 pixels per clock rendering engine
  • NVIDIA® CUDA™ technology capable
  • Scalable geometry architecture
  • Hardware tessellation engine
  • NVIDIA® GigaThread™ engine
  • Shader Model 5.0 (OpenGL 4.3 and DirectX 11)
  • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile,
  • H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
  • Blu-ray dual-stream hardware acceleration, with HD PIP playback
  • Dedicated H.264 Encoder
Advanced Display Features
  • Support for any combination of four connected displays
  • DisplayPort outputs natively drive up to four digital displays at resolutions up to 3,840 × 2,160 at 60Hz
  • Connect to various monitor types using multiple mini-DisplayPort based cable adapters or widely available standard DisplayPort cable adapters (when used with the included latched mini-DisplayPort to DisplayPort cables)
  • DisplayPort to DVI-D SL to drive DVI displays up to 1,920 × 1,200 at 60Hz
  • DisplayPort to DVI-D DL to drive DVI displays up to 2,560 × 1,600 at 60Hz
  • DisplayPort to HDMI cables to drive HD displays up to 1,920 × 1,080 at 60Hz
  • DisplayPort to VGA cables to drive analog displays up to 1,920 × 1,200 at 60Hz
  • DisplayPort 1,2, HDMI 1.4a, and HDCP support
  • DisplayPort 1.2 Multi-Stream Technology simplifies cable management and support up to 4 displays at 1,920 × 1,200 at 60Hz
  • Drive up to 16 displays (4 groups of cloned images via each DisplayPort connector) using supported DisplayPort 1.2 Stream Cloning technology
  • Support for integrated audio via DisplayPort and HDMI
  • Support for multiple display modes including DualView, Span, and Clone modes
DisplayPort and HDMI Digital Audio
  • Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Dual Channel and Multichannel (7.1) LPCM, Dolby Digital Plus Dolby Digital Plus and MPEG-2 or MPEG-4 AAC
  • Data rates of 44.1kHz, 49kHz, 96kHz, 176kHz, and 192kHz
  • Word sizes of 16-, 20-, and 24-bit
NVIDIA® NVIEW® Desktop Management Software
  • Boosts productivity by delivering maximum flexibility for single and multi-display set-ups, and provides unprecedented end-user control of the desktop experience.
  • Seamless integration within the Windows environment
  • Easy to use Setup Wizard
  • Extended Windows Taskbar to spread the application buttons across displays
  • Get virtual sub-displays with Gridlines to make best use of large display setups
  • Create Virtual Desktops to maximize work area and reduce application clutter
  • Complete set of Hot Keys
  • User Profiles for easier system deployments
NVIDIA® Mosaic
  • Enhance your workspace over multiple displays (up to 8 displays when used with multiple NVS 510 Graphics Cards)
  • Enables seamless taskbar spanning as well as transparent scaling of any application over multiple displays
NVIDIA® Enterprise Management Tools
  • Monitor, access and configure graphics and display information of remote machines using industry standard WMI Interface
  • Scriptable using WMI Command Line interface for integration with System level Management tools
  • Scalable Enterprise-Class tools to remotely install & configure graphics drivers across your entire organization
NVIDIA CUDA Parallel Processing Architecture
  • SMX Architecture (streaming multi-processor design that delivers greater processing and efficiency)
  • Hyper Q (allows multiple CPU cores to simultaneously utilize a single NVS 810 GPU to execute independent compute kernels)
  • API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
Unified Driver Architecture
  • Supports NVS 510, NVS 310, NVS 300, NVS 450, NVS 420, NVS 295, NVS 290
  • Support for the latest applications on previous- and current-generation hardware
  • Continuous performance tuning
  • Microsoft Windows Hardware Qualification Lab (WHQL)-certified for Windows 8, Windows 7, Windows Vista, and Windows XP

Product Specifications

CUDA Cores 192
GPU Memory 2GB DDR3
Memory Interface 128-bit
Memory Bandwidth 28.5GB/s
System Interface PCI Express 2.0 x16
Maximum Power Consumption 33.4W
Energy Star Enabling Yes
Thermal Solution Ultra-quiet active fansink
Form Factor 2.713" H × 6.30" L, Single Slot
Display Connectors 4 mini-DisplayPort
DisplayPort 1.2 Yes
DisplayPort with Audio Yes
Mini-DP to DP adapters 4 included (MDP-DP-FOUR-PCK)
Number of Displays Supported 4
Maximum DP 1.2 Resolution 3840 × 2160 at 60Hz
HDCP Support Yes
Graphics APIs Shader Model 5.0, OpenGL 4.3, DirectX 11
Compute APIs CUDA, DirectCompute, OpenCL
NVIEW Enabled Yes
Mosaic Mode Yes
