SL-VIDEO-PNY-P6000-24GB

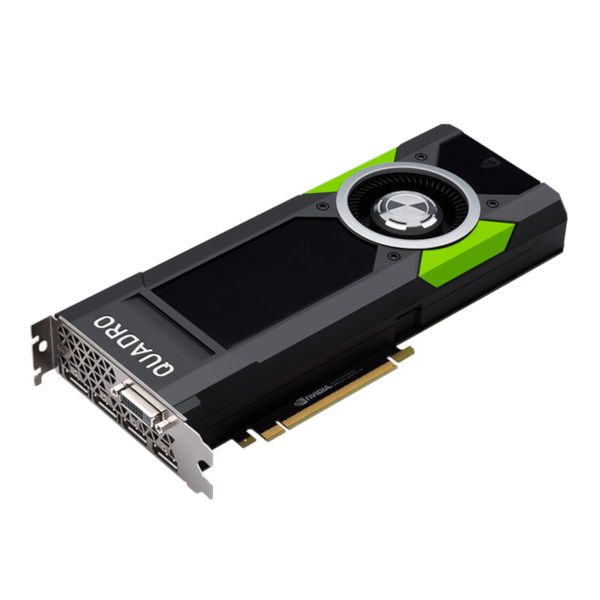

NVIDIA Quadro P6000 24GB 384-bit GDDR5X PCIe 3.0 x16 Workstation Video Card - 4 x DisplayPort 1.4 + DVI-D DL + Stereo

NVIDIA Quadro P6000 24GB 384-bit GDDR5X PCIe 3.0 x16 Workstation Video Card  - 4 x DisplayPort 1.4 + DVI-D DL + Stereo
  • P6000

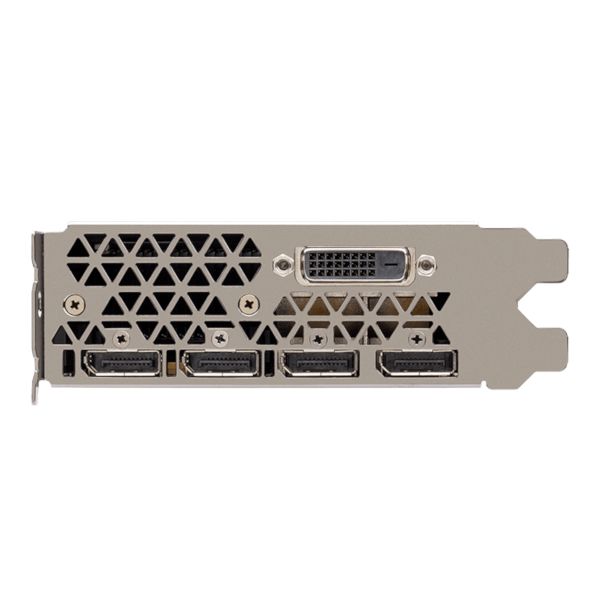

  • I/O
CUDA Cores 3840
Peak Single Precision FP32 Performance 12.0 TFLOPS
GPU Memory 24 GB GDDR5X
Memory Interface 384-bit
Memory Bandwidth 432 GB/s
System Interface PCI Express 3.0 x16
Display Connectors DP 1.4 (4) + DVI-D DL (1) + Stereo
Related Products
Technical Specifications

SPECIFICATIONS AND SOLUTIONS

CUDA Cores 3840
Peak Single Precision FP32 Performance 12.0 TFLOPS
Multi-GPU Scalability NVIDIA SLI HB
GPU Memory 24 GB GDDR5X
Memory Interface 384-bit
Memory Bandwidth 432 GB/s
System Interface PCI Express 3.0 x16
Maximum Power Consumption 250W
Quadro Power Guidelines
Energy Star Enabling Yes
Thermal Solution Ultra-quiet active fansink
Form Factor 4.40” H x 10.50” L, Single Slot
Display Connectors DP 1.4 (4) + DVI-D DL + Stereo
DisplayPort with Audio Yes
DVI-D Single-Link Connector Via included adapter
HDMI Support Via optional adapters
VGA Support Via optional adapters
Number of Displays Supported 4
Maximum DP 1.4 Resolution HDR 7680 x 4320 at 30Hz (30-bit color)
5K Display Support HDR 5120 x 2880 at 60Hz (30-bit color)
4K Display Support HDR 4096 x 2160 at 60Hz or 3840 x 2160 at 60Hz
Maximum DVI-D DL Resolution 2560 x 1600 at 60Hz via 3rd party adapter
Maximum DVI-D SL Resolution 1920 x 1200 at 60Hz via included adapter
Quadro and NVS Display Resolution Support
HDCP Support Yes
Professional 3D Support Yes, via included stereo connector bracket
Quadro Sync II Compatible Yes (Frame Lock and Genlock)
NVIDIA GPU Direct Compatible Yes
Graphics APIs Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0
Compute APIs CUDA, DirectCompute, OpenCL
NVIEW Yes
NVIDIA MOSAIC Yes (Windows 10, 8.1, 8, 7, and Linux)
